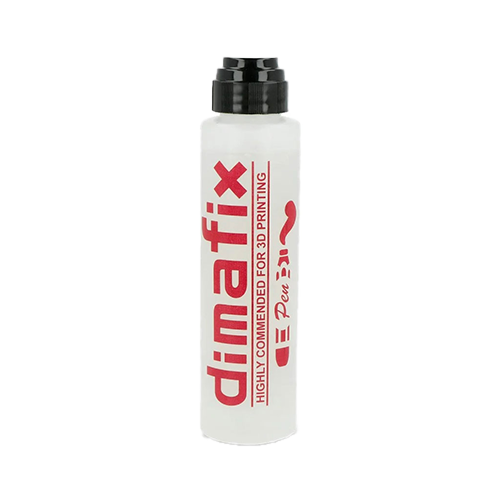

Dimafix suture pin

For optimal printing results, a 3D print must adhere well to the 3D printer bed. With Dimafix you apply an adhesive layer to your printer bed. This prevents deformation of print parts (warping). Dimafix is ​​an aerosol fluid that provides improved adhesion between the first layer of the 3D print and the printer bed at a temperature above 60˚C. Below 60˚C the adhesive layer loses its effectiveness, which makes removing print parts easier.

The adhesion depends on the variations in temperature of the 3D printer bed:
– Below 60˚C: No adhesion, print parts easily detach from the printer bed
– Between 60 – 70˚C: Average adhesion, for smaller, less complicated objects.
– Between 75 – 95˚C: Strong adhesion, for complicated and large print parts.
– Above 95˚C: Very strong adhesion, for very complicated and long-lasting print parts.

Instructions

• Clean the printer bed of the printer thoroughly with the appropriate cleaner.
• Check the temperature of the printer bed, it should be below 50˚C.
• Apply Dimafix evenly on the printer bed.
• Heat the printer bed and start the 3D print.
• After printing is completed, wait until the temperature of the printer bed is below 50˚C.
• Remove the printed part from the printer bed.
• Clean the printer bed with the 3D printer bed cleaner .
